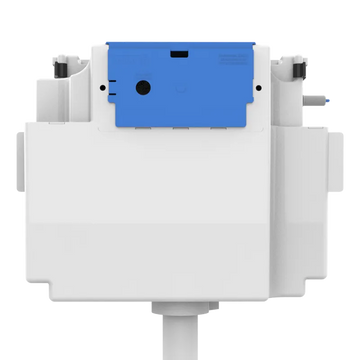

Dudley'Vantage' 6/4, 5/3 or 4.26L Dualflush Concealed Cistern. LL. HP/LP. Side Conns. Int.only c/w Dudley 'Niagara' Dualflush Valve * No Button * 51-41mm Flushbend. No Poly. Jacket

Thomas Dudley manufactures a market-leading range of high quality concealed cisterns. These are perfect for use in all domestic and commercial applications and can be used with confidence in fitted furniture or behind tiles and most partitioning materials. A vast range of pushbuttons, push plates, levers and touch-free electronic sensors is available to provide the perfect finishing touch to any project. The Vantage has been designed specifically for use in bathroom furniture. It is ideal for use behind tiles and partitioning and in most other concealed applications. Available in multiple specifications. Please contact TYDE for more information.

Supports BREEAM, bespoke flush volumes available upon request.

Features

• 460mm [W] x 369mm [H] x 125mm [D]
• Supplied factory assembled
• Fitted with integral isolating valve and internal overflow warning
• Air tubes enable button, plate or sensor to be installed up to 250mm away from cistern
• Front and Top Access panels
• Compact dimensions enables the Dudley Vantage to fit neatly into furniture units as small as 500mm [W] x 200mm [D] x 800mm [H]
• Cistern assembly is WRAS approved
• Fitted with WRAS approved Hydroflo Side Inlet & Niagara Pneumatic Valve
• Side inlet
• Pushfit flushbend
• Unique cistern fixing brackets
• Fully compliant with UK Water Regulations
• Multiple specification options: Insulation Jacket, Single Flush, 73.5mm Button, Piazza Button, Royal Button, Oyster Plate, Reef Plate Coral Plate, Electroflo and Vantage cisterns are available with Cat 3 & Cat 5 backflow prevention
• For other variations please contact TYDE
• Stock Item - Available for next working day dispatch
